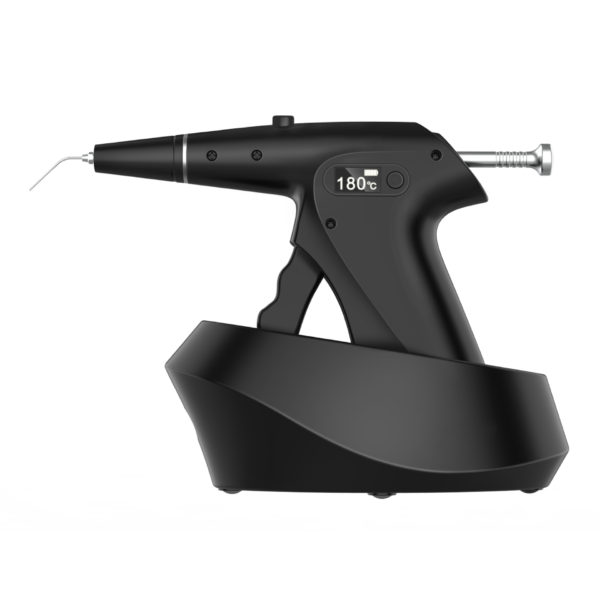

Woodpecker Fi-G Manual Obturation Device
Log in as a professional to see the priceManual Gutta-Percha Obturation Device
An Innovative Solution at a Remarkable Value
Only credit card payments are accepted.
Woodpecker Fi-G Fi-P
Woodpecker wireless gutta-percha obturation system
Wireless thermoplastic obturation system
- Master the backfill
- Reliable flow
- Wireless freedom
- Perfect 3D sealing
Quick heating within
15 seconds
Reduces waiting time and increases your efficiency.
360° rotatable needle
Prevent gutta-percha leakage, optimized structure, 360° uniform rotation, effectively avoiding gutta-percha leakage.
0.5 mm injection needle
Easy to reach the apical 3 mm of canal brings better filling.
Pushing ram with
anti-return structure
Mechanical-locking structure, effectively preventing the pushing ram from returning and avoiding the generation of cavities and bubbles.
Compatible tips
| Type | Size | Length |
|---|---|---|
| 20G-22MM | 20 G | 22 mm |
| 20G-24MM | 20 G | 24 mm |
| 20G-28MM | 20 G | 28 mm |
| 23G-24MM | 23 G | 24 mm |
| 23G-28MM | 23 G | 28 mm |
| 25G-24MM | 25 G | 24 mm |
Fi-G technical specifications
| 4 working temperatures | 50°C, 180°C, 200°C, 230°C |
| Charging time | ~ 2.5 h |
| Usage duration | 1 500 operations (~ 5 s each) |
| Input | AC 100 V–240 V 50Hz/60Hz / 800 mA |
| Output | DC 15 V / 1.6 A |
| Battery capacity | 2000 mAh |
| Dimensions (L × W × H) | 165 mm × 32 mm × 118 mm (main unit) |
| 150 mm × 76 mm × 63 mm (charging base) | |
| Weight | 206 g (main unit) |
| 212 g (charging base) | |
| 167 g (power adapter) |
Wireless gutta-percha heat source
- Perfect 3D seal
- Precise apical control during downpack
- Softening gutta-percha exactly where needed
- Protects the PDL
Wireless gutta-percha heat source
0.2 second heating time
High-performance conversion system ensures efficient cutting.
0.35 mm bendable tip
Thinner tips can penetrate deep into the narrow root canal, providing you with a better treatment effect.
High precision temperature control
7 working temperatures matches any gutta-percha brands on the market. Consistent temperature to prevent scalding.
4 hours of endurance
Large capacity battery and special heating system enable up to 1 500 operation on a full charge.
Compatible tips
| Type | Size | Taper |
|---|---|---|
| WP3504 | 0.35 mm | 0.04 ⌀ |
| WP4004 | 0.40 mm | 0.04 ⌀ |
| WP4504 | 0.45 mm | 0.04 ⌀ |
| WP5004 | 0.50 mm | 0.04 ⌀ |
| WP5506 | 0.55 mm | 0.06 ⌀ |
| WP5508 | 0.55 mm | 0.08 ⌀ |
| WP5508L | 0.55 mm | 0.08 ⌀ |
| WP5510 | 0.55 mm | 0.10 ⌀ |
| WP6012 | 0.60 mm | 0.12 ⌀ |
Fi-P technical specifications
| 7 working temperatures | 90°C, 120°C, 150°C, 180°C, 200°C, 230°C, 250°C |
| Charging time | ~ 2.5 h |
| Usage duration | 1 500 operations (~ 5 s each) |
| Input | AC 100 V–240 V 50Hz/60Hz / 800 mA |
| Output | DC 15 V / 1.6 A |
| Battery capacity | 2000 mAh |
| Dimensions (L × W × H) | 157 mm × 25 mm × 25 mm (main unit) |
| 150 mm × 76 mm × 63 mm (charging base) | |
| Weight | 80 g (main unit) |
| 195 g (charging base) | |
| 167 g (power adapter) |
