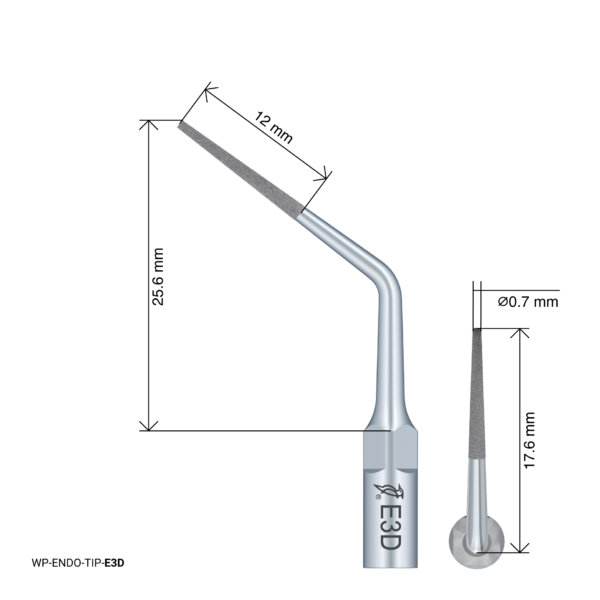

Endodontic Tip – E3D

Name: Endodontic Tip - E3D - Oral Science
SKU: WP-ENDO-TIP-E3D
Price: 29.99 CAD
Availability: InStock

Enlargment of Root Canal & Accessing Broken Files

Type: Diamond-Coated (5mm) Stainless Steel

Power Level: Low

Irrigation Level: Low to High

Mode: E

Compatibility: Acteon Satelec® / Woodpecker® / NSK® ultrasonic devices

SKU: WP-ENDO-TIP-E3D Categories: Endodontic, Endodontic Tips, Endodontic Tips Brand: EndoStore, Woodpecker, Woodpecker PT-B, Woodpecker PT-E, Woodpecker U600, Woodpecker U600 Tips

Precision root canal therapy

Next generation of piezoelectric technology. With a specialized Endo Mode, sine-wave drive, and smart power regulation, it is engineered to handle complex root canal treatments with the same ease as routine scaling.

Intelligent power feedback: Comfortable scaling technology

Automatically adjusts the power output to the tip based on the tooth surface’s resistance. This use of sine-wave drive technology minimizes sudden current outputs, significantly reducing patient discomfort and ensuring stable, sustained scaling efficiency.

The heart: Detachable HW-6L handpiece

Autoclavable: Safe up to 134°C and 0.22MPa.
Aluminum alloy: Durable, resistant to cracking or yellowing.
Clear visibility: Integrated LED light ensures excellent visibility in the oral cavity and remains lit for ten seconds after the foot pedal is released for continued visualization.

Integrated multi-functionality

Combines functions for supragingival scaling (G), periodontics (P), and endodontics (E) in a single machine, allowing for a wide variety of treatments from standard calculus removal to complex root canal therapy.

Smart negative feedback

Doesn’t just vibrate; it thinks. The built-in degenerative feedback system automatically adjusts the power output depending on the resistance of the calculus.

Automatic frequency tracking

Automatically searches for and maintains the most efficient working frequency, ensuring stable and optimal performance during use.

woodpecker-u600-automatic-water-supply-system

Auto-water supply system

Comes with a 700 mL water supply reservoir, but can also be used with an external source. Compatible with various clinical solutions, such as hydrogen peroxide, sodium hypochlorite, and chlorhexidine, to improve clinical treatment effects like effective endodontic irrigation. Purging the reservoir and flushing it with distilled water is crucial to prevent solenoid damage.

Waterproof Touch System

Features a modern, waterproof, and highly sensitive touch screen interface for easy operation and power adjustments, even with wet gloves.

U600 tips catalogue

Uses “E type” (EMS-type) tips, not compatible with S type (Satelec-type) tips. It is crucial to match the tip type to the specific handpiece, as they are not cross-compatible by default. An E-type tip cannot be used with an S-type scaler and vice versa.

Technical specifications

Main unit input	24 V, 50 Hz/60 Hz 1.3 A
Output power	3 W – 20 W
Frequency	28 kHz ± 3 kHz
Water pressure	0.01 MPa – 0.5 MPa
Main unit weight	1.8 kg
Dimensions	230 mm × 200 mm × 120 mm
