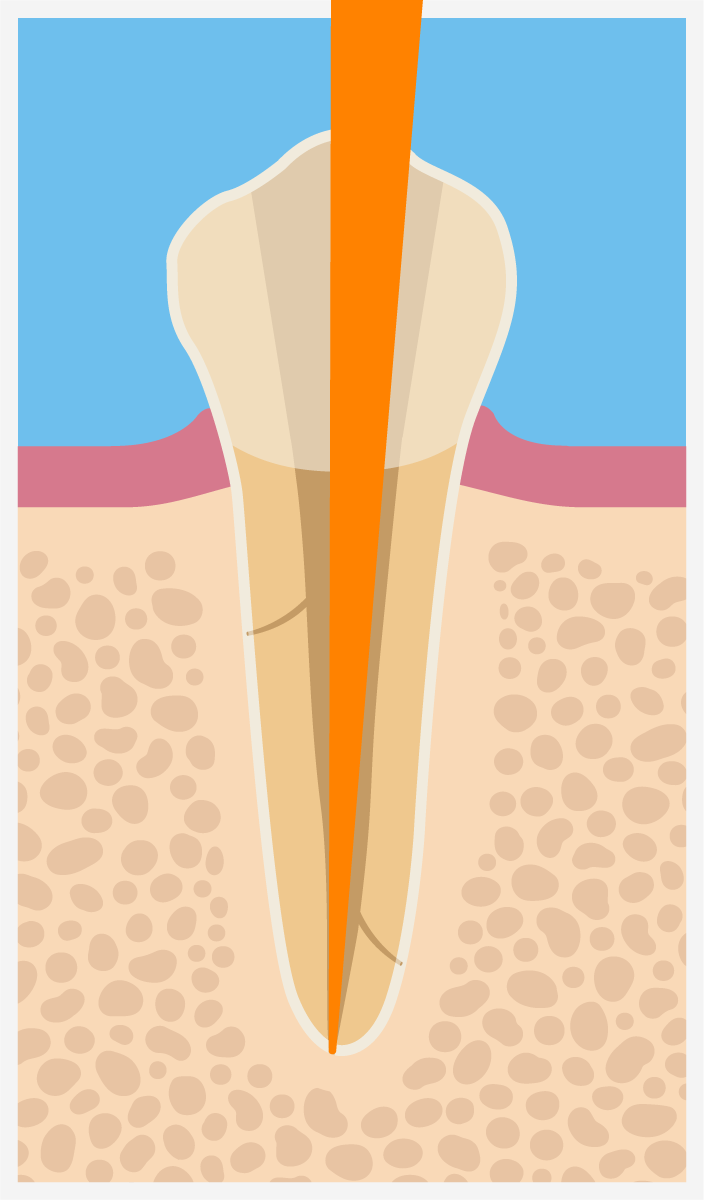

Master cone selection and fitting
- Select a gutta-percha master cone that matches the apical size and taper of the prepared canal.
- Trial-fit the cone to working length, checking for firm apical tug-back.
- Adjust as necessary.
- Take a working radiograph to verify apical placement of the master cone.

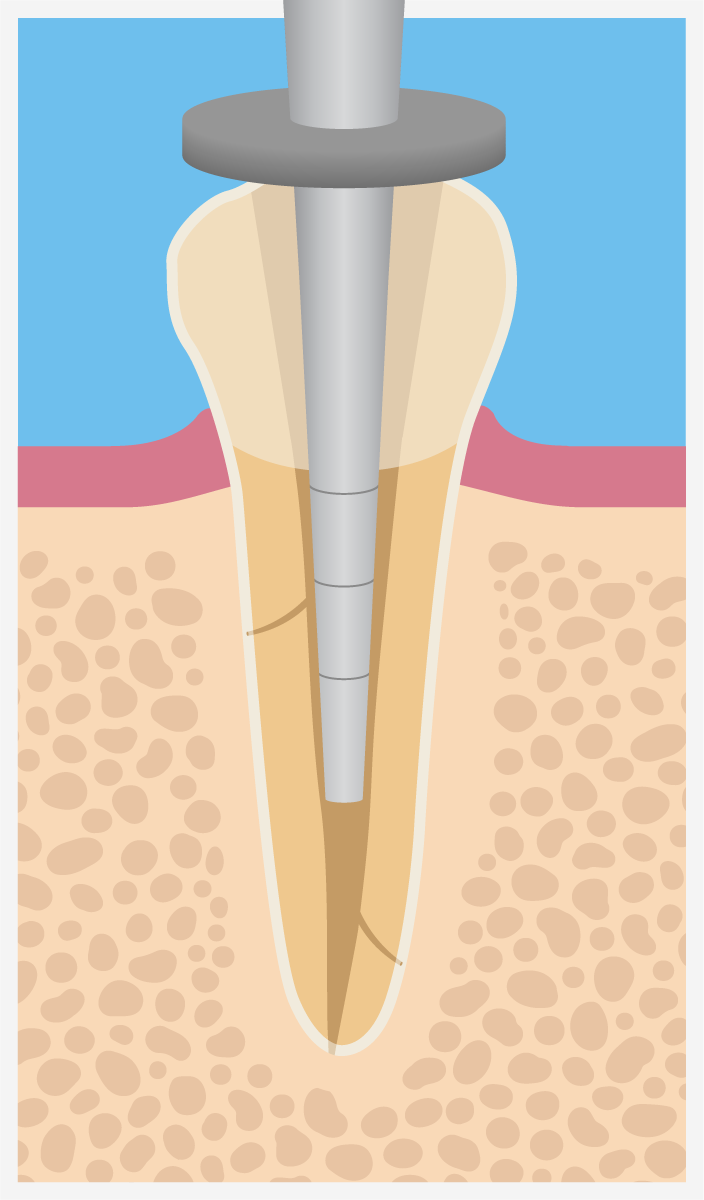

Pre-fitting pluggers
- Check fit of smallest condenser that will fit into the interface of the middle and apical third of the canal preparation – ideally, 3-5 mm from working limit.
- Repeat with larger condensers adhering to zone concept of middle and coronal third.
- Set stopper 1mm shy of condenser contact in canal to avoid binding/wedging and possible fracturing during condensation.

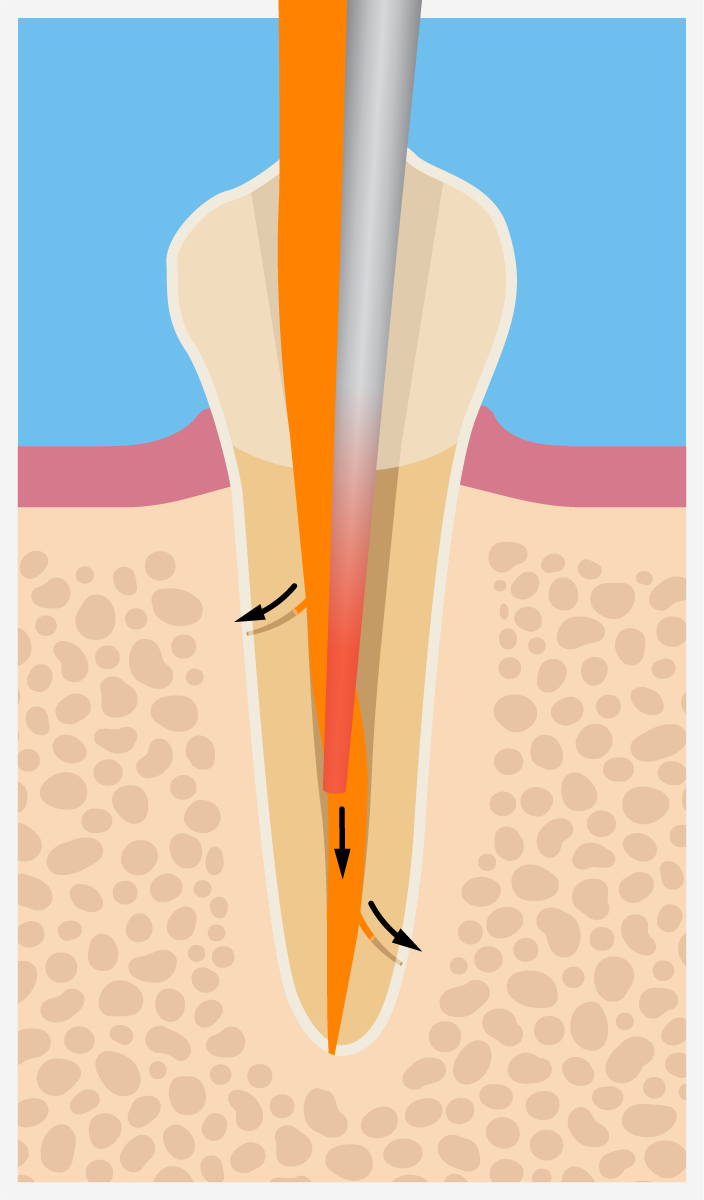

Searing the master cone
- Apply sealer to the canal and surface of master cone.
- insert master cone to working limit, avoid pumping to “piston” sealer causing apical extrusion.
- Sear off coronal portion of cone slightly below canal orifice and compact with flexible FiP tip.
- Stop activation, do not remove gutta-percha, allow tip to cool.

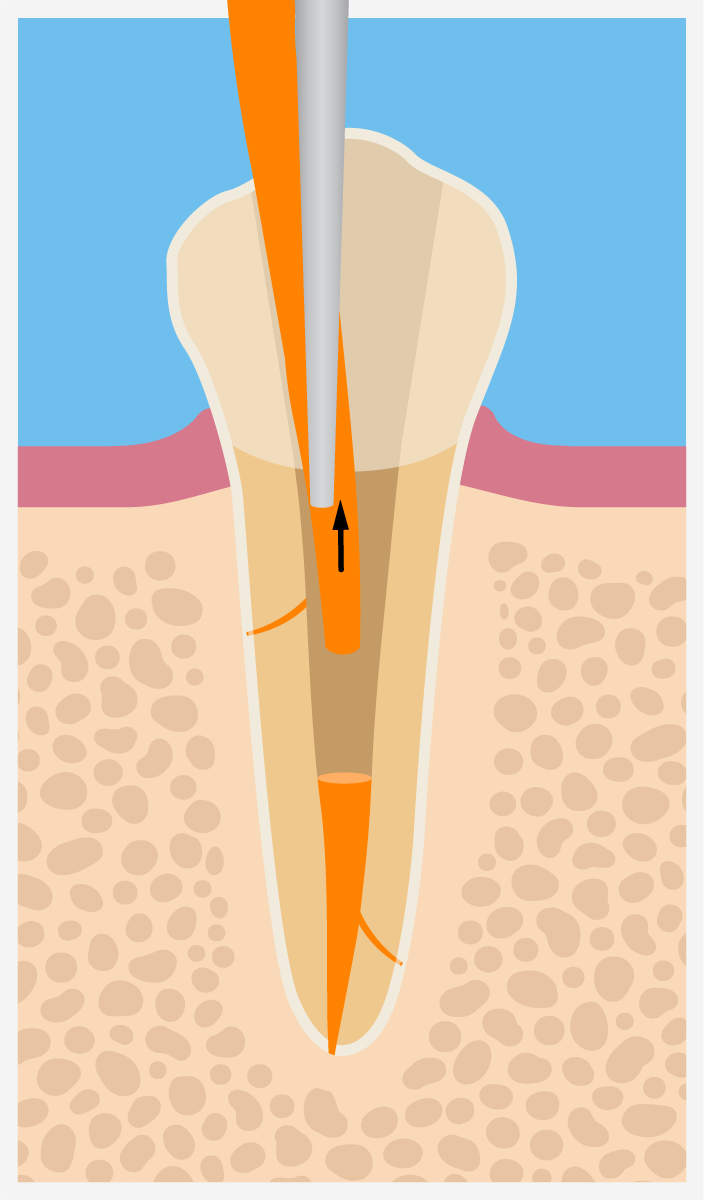

Remove coronal segment
Separation burst – reactivate the Fi-P tip, and retrieve the gutta-percha segment from the mass compacted.

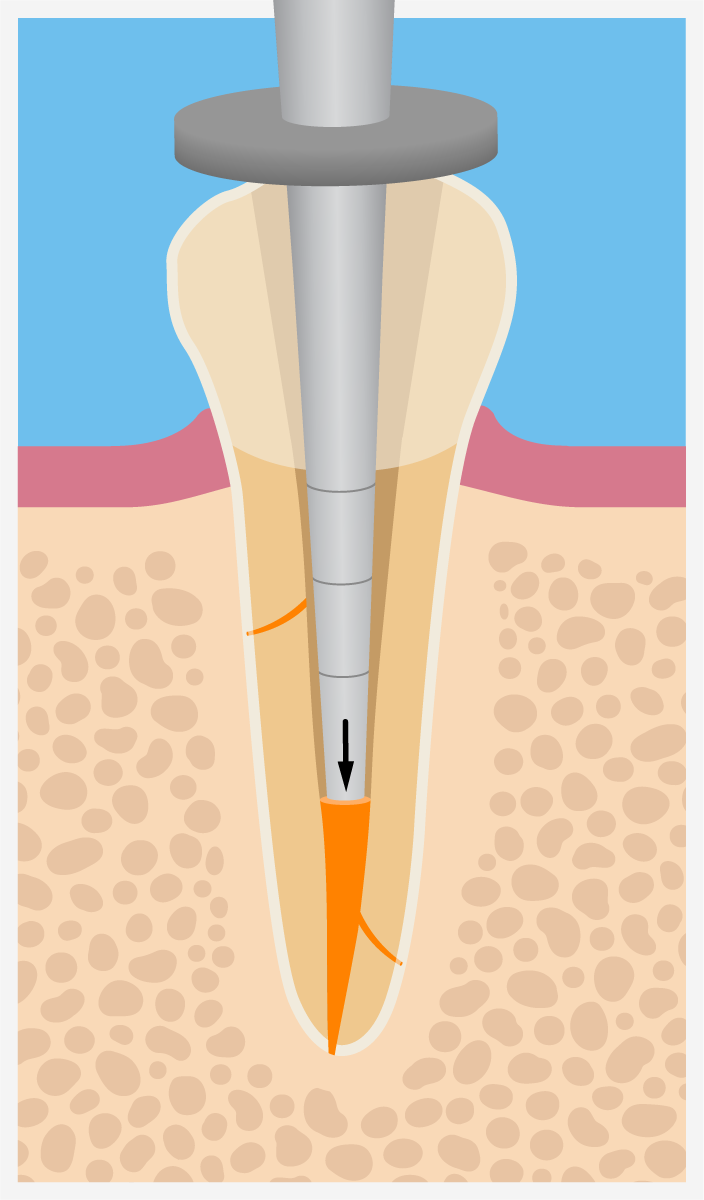

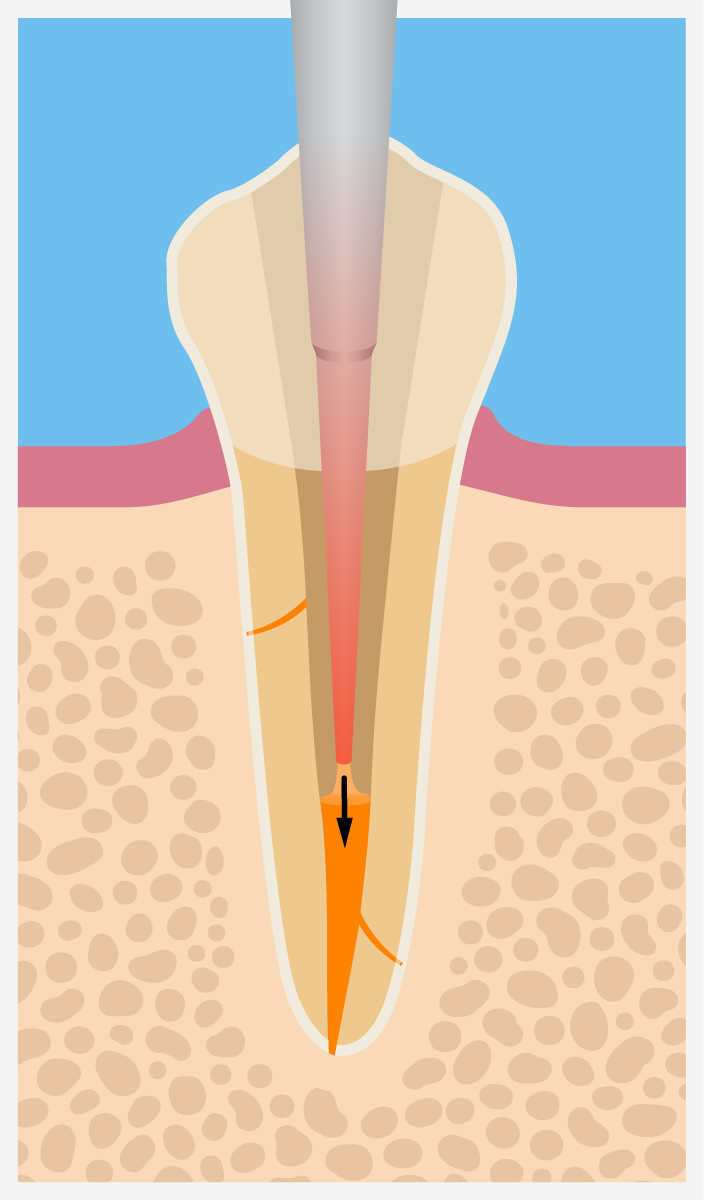

Downpack: Progressive vertical compaction
- Use the prefit plugger to compact the softened mass into the apical matrix.
- With short firm strokes molding the gutta-percha onto the canal walls and flattening it .
- Sequence is repeated depending on volume of gutta-percha removed until apical “corkage” is achieved.
Backfilling

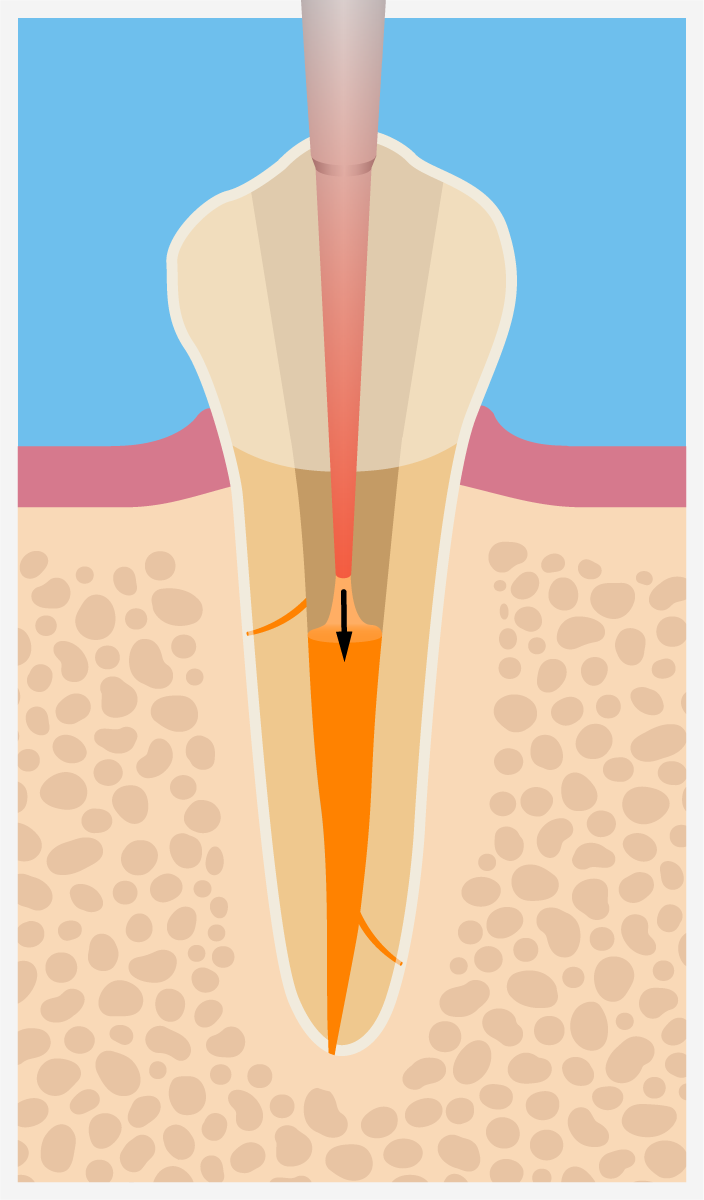

The Fi-G or Fi-E is set to the temperature desired based on the shape and length of the canal preparation. Put a small dollop of sealer on the coronal surface of the plug and inject a 3mm aliquot of gutta-percha.
Backfilling

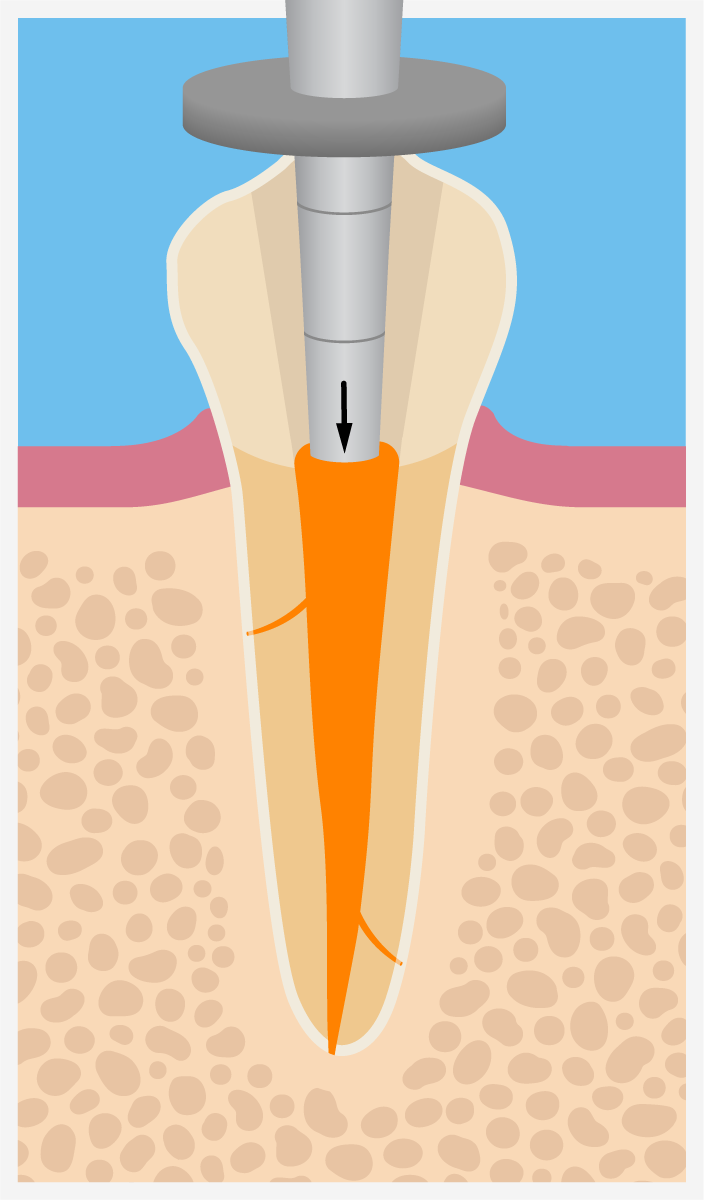

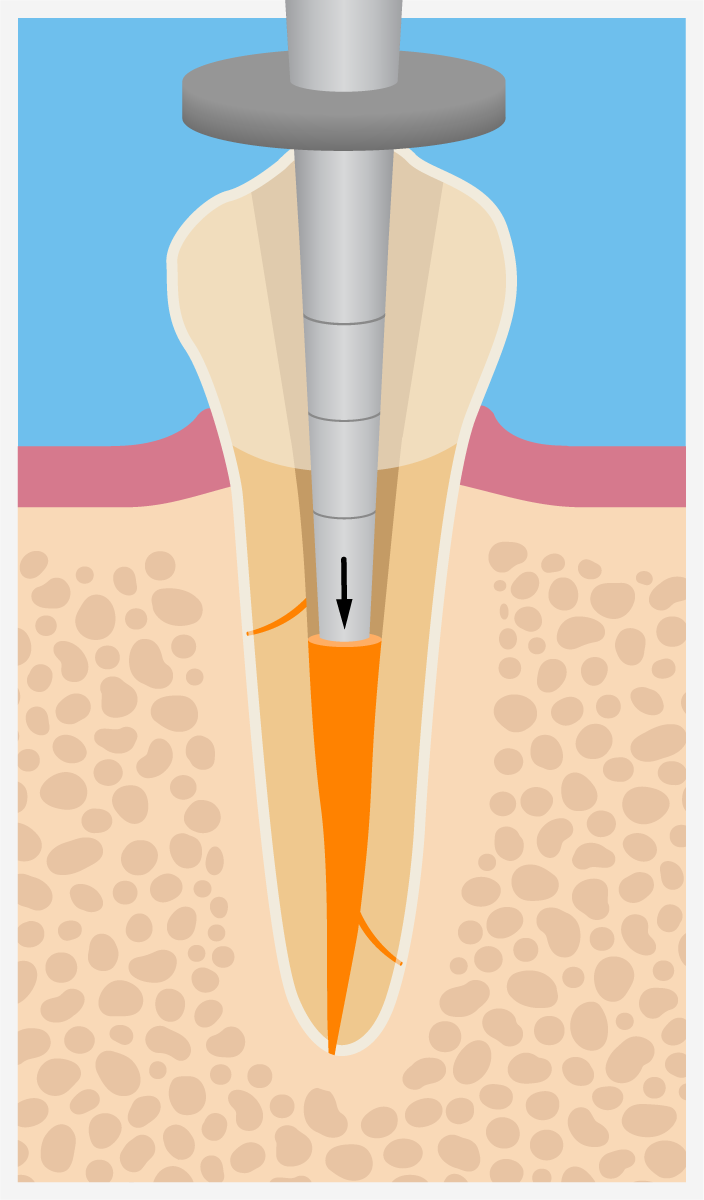

Larger prefit condenser vertically compacts the increment of thermosoftened gutta-percha delivered into the canal space. Do not leave a post space if indicated at this juncture.
Backfilling
Sealer is placed on the coronal aspect of the gutta-percha mass, the injector tip is inserted into the mass and an aliquot delivered to ensure the gutta-percha fills to the floor of the chamber.
Backfilling

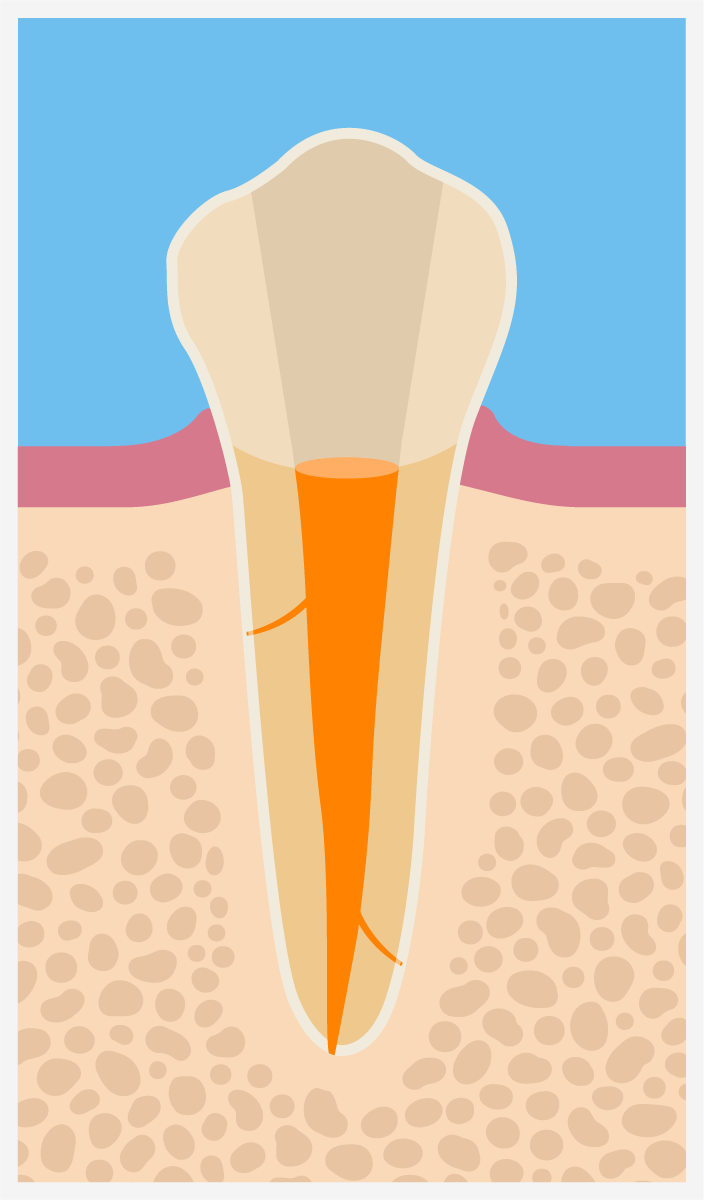

The largest plugger is used to compact the gutta-percha mass and seal the canal orifice.
